Jiusheng Double Pass Racing Radiator 2 Row 1" Core
Category:Racing Radiator
Request A Quote
FEATURES
TECH SPECS
PICTURES
WARRANTY

Contact US To Get Factory Price! We Are Leading Manufacturer, Supporting Customization

Description

Double Pass Lightweight Aluminum Racing Radiator with Driver Side Inlet/Outlet


  • Lightweight All-Aluminum Construction for improved performance & Cooling

  • Double or Triple Pass Cores to Keep your Race Engine Cool!

  • Support Customization, Various Styles

  • Popular 1 1/2 in. Inlet & 1 3/4 in. Outlet, Also Available with -12 AN Port Style Fittings

  • Multiple Sizes Available to Fit Most Applications

  • Constructed with Two Rows of 1 In. Noculoc-Brazed Tubes with Maximized Fin Counts For Peak Efficiency

  • World class TIG welding by our factory, Provide Precise Fitment & Ensure Leak-Free Operation

  • Billet Radiator Filler Necks Accept Standard 1 5/8 in. Inner Cap Diameter,

    Also Available without Filler Neck

  • Leakage & Pressure tested and guaranteed

  • All items CAD designed to meet ISO9001 International standards for repeatability

  • Wholesale Price, Contact Us!



Jiusheng can custom make to your requirements. Please let us know your custom configuration. Call us today on +86-18206176806 or email jiushengradiator@gmail.com for a quote.


Please Click Other Tags to Know More Information about Aluminum Radiator


Part Type
Radiator Style
Crossflow
Row Quantity
2
Inlet Size (in.)
1.5
Inlet Location
Upper driver side
Outlet Size
1.75 in (44.5 mm)
Outlet Location
Lower driver side
Transmission Cooler
No
Radiator Cap Included
No
Fan Included
No
Material
Aluminum
Finish
Polished
Core Height
17.5 in (444.5 mm)
Core Width
16 in (406.4 mm)
Core Thickness
2 in (50.8 mm)
Overall Height
19 in (482.6 mm)
Overall Thickness
3 in (76.2 mm)
Overall Width
22 in (558.8 mm)
Tube Size
1 in (25.4 mm)
Shipping Weight:
15.3
Package Height:
23
Package Depth:
29
Package Width:
8
Part Category:
Performance Parts
Part Fitment:
Semi Universal


Images Of Air to Air Intercooelr Core

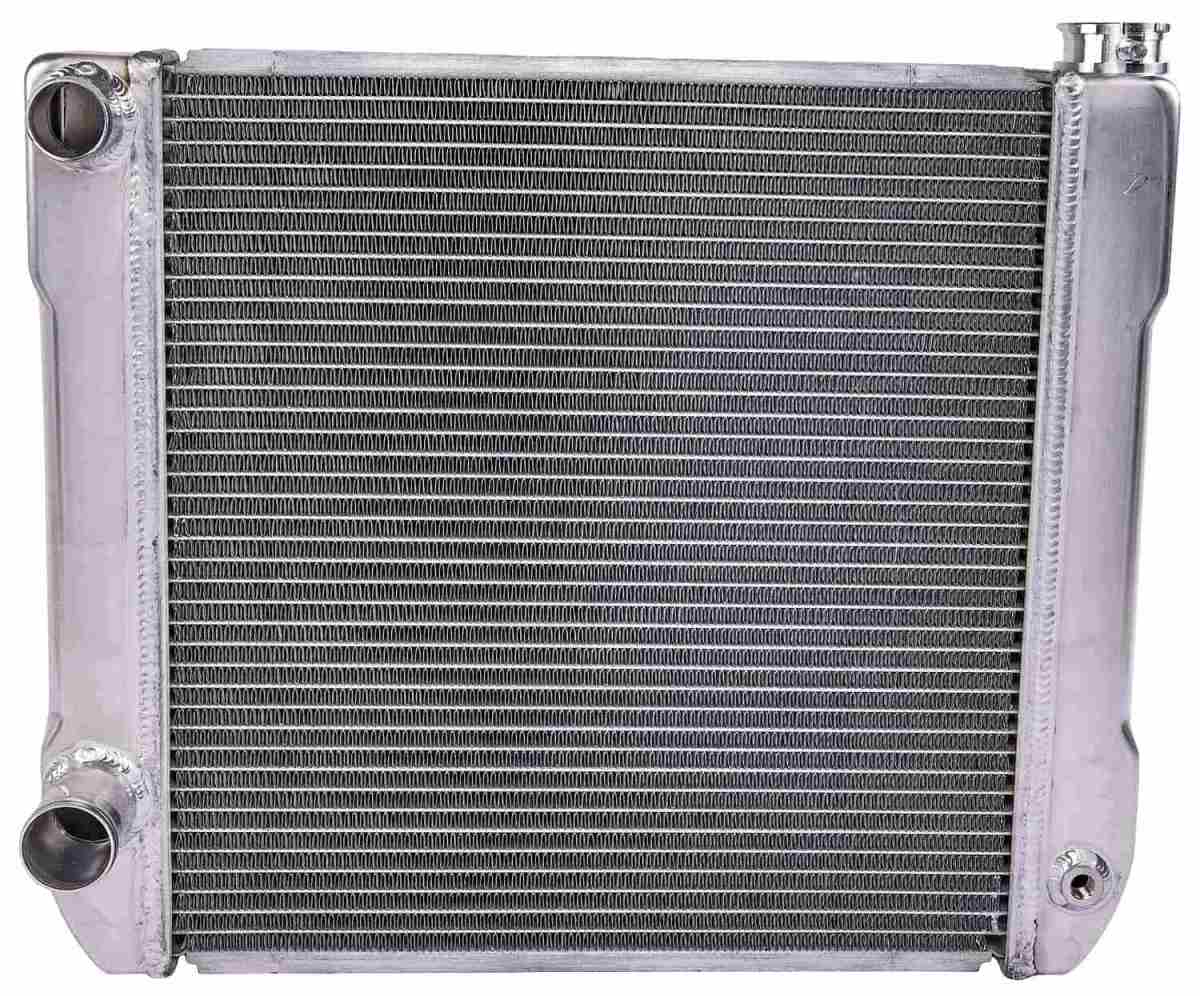

hot sale aluminum radiator

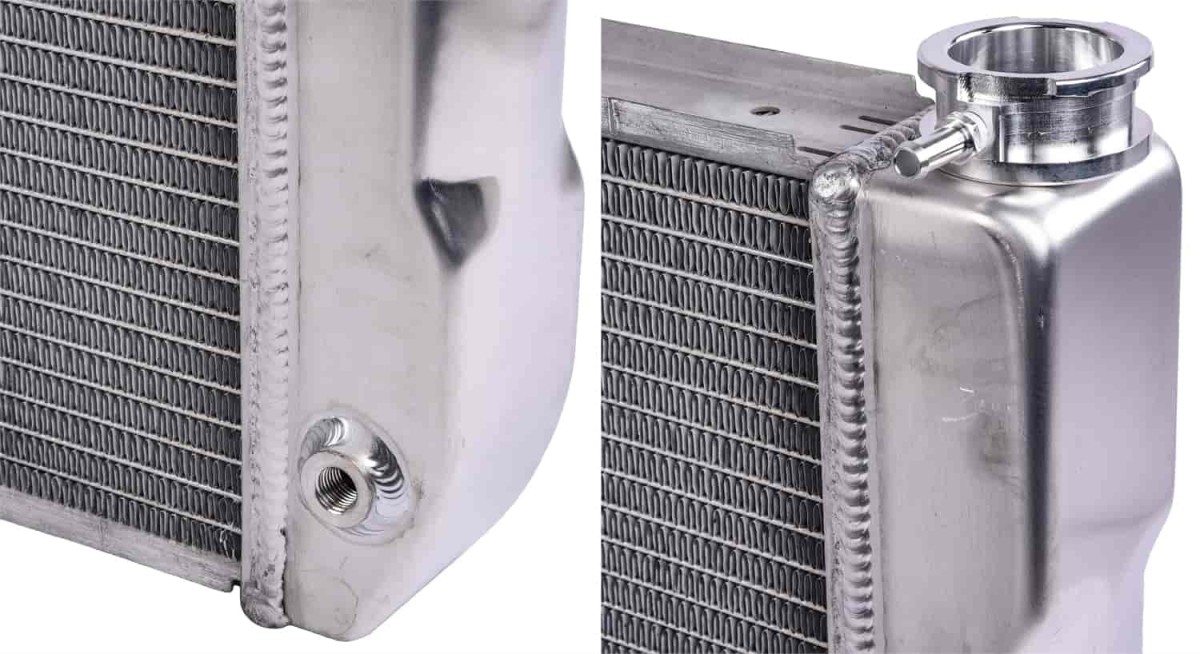

radiator manufacturer

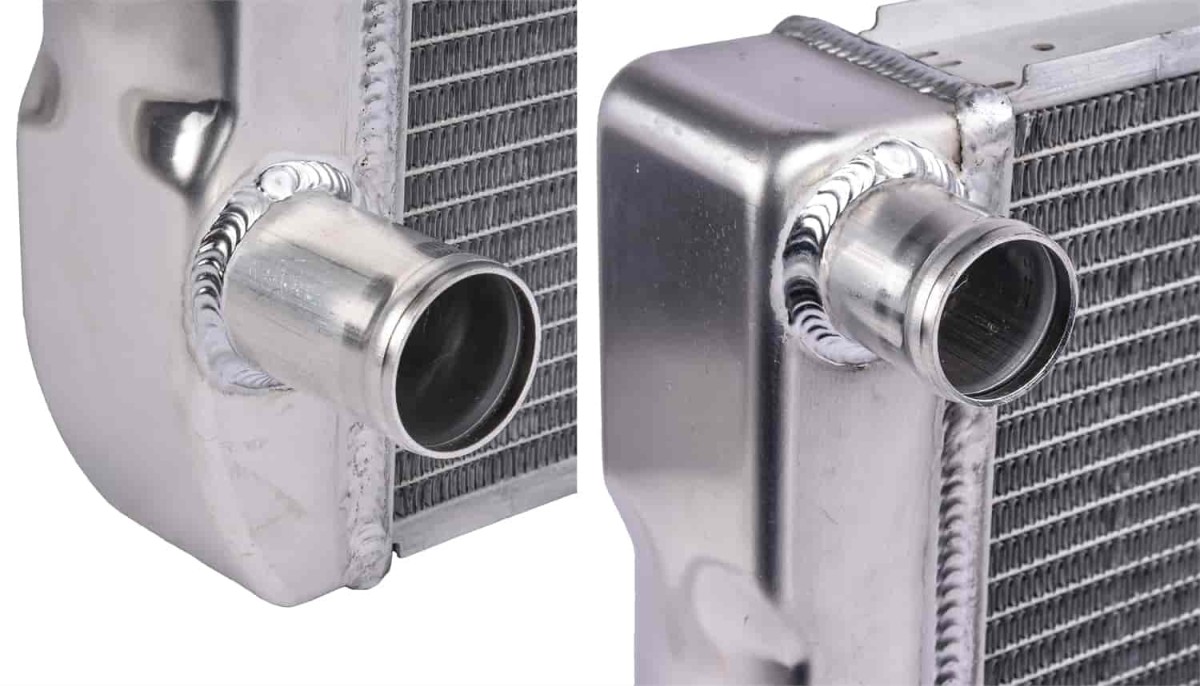

buy aluminum radiator

Jiusheng Factory Show

factory detail show


Process Of Aluminum Heat Exchanger Core( Intercooler Core )

process


Packing & Delivery

intercooler packing


Our Certificates

our certificates

our certificates about heat exchanger


Our Customers

our customer


warranty

Jiusheng strive to produce the highest quality products designed to withstand many years of use and we are proud to stand behind these products. However, we manufacture many products and if you make enough of anything, a limited number of problems may be expected. It is how we deal with a problem that is important!



Effective January 2009 onwards, if your product fails due to a manufacturing defect we will repair or replace it without charge, at our discretion. Only original, unaltered and unmodified materials and workmanship are covered by this policy.



This warranty does not cover damage caused by accident, improper care, negligence, normal wear and tear, or the natural breakdown of materials over extended time and use.



Damage not covered under warranty may be repaired for a reasonable rate and a fee will be charged for return shipping.



The products eligible for warranty are covered to the original owner, for the lifetime of the product. For warranty evaluation, your product must be returned directly to No. 6, Bibo Road, Wuxi, Jiangsu, China.



All shipping for warranty must be pre-paid and insured and accompanied by reference to the original invoice. We cannot be liable for lost or damaged in-bound packages. Please check the warranty tab on the product detail page for further information. You accept these conditions by purchasing the product.
