Horizontal Flow Air to Air Intercooler Core Support Customization
Category:Heat Exchanger Core
Request A Quote
Email
FEATURES
TECH SPECS
PICTURES
WARRANTY

Contact US To Get Factory Price! We Are Leading Manufacturer, Supporting Customization

Description

Vibrant Performance Horizontal Flow Air to Air Intercooler Cores feature Bar and Plate construction and a unique louvered fin design on the ambient path that maximizes the core's available surface area, and an offset fin design on the charge path allows for minimal pressure loss.


  • Up to 20% More Efficient than Standard OEM Using the Latest Fin Technology

  • World Class TIG Welding by Our Factory

  • State of the Art Controlled Brazing Process

  • All Items CAD Designed to Meet ISO9001 International Standards for Repeatability

  • Race and Street Proven Performance Backed by Comprehensive Wind Tunnel Testing

  • Leakage & Pressure Tested and Guaranteed

  • LifeTime Year Manufactured Warranty

  • 100% China Made

  • Support Customization, Send Us Your Requirements!



Jiusheng can custom make to your requirements. Please let us know your custom configuration. Call us today on +86-18206176806 or email jiushengradiator@gmail.com for a quote.


Features

  • High heat transfer efficiency, good temperature controllability

  • Compact:Heat transfer area density is high

  • Lightweight, practical good

  • High reliability


Structural Of Heat Exchanger

structural of intercooler


Types Of Fin

fin type


Please Click Other Tags to Know More Information about Intercooler Core



Application
1. Cooler core, compact size and efficient construction.
2.Aluminum plate and bar type air/oil/water cooler core
3.working pressure: 2-40 bar
4.working temp : -10-220 Deg C
5.ambient temp:0-50 Deg C
Description
1. Compact bar and plate design, air-cooled unit, Higher Strength and efficiency than fin tube designs.
2.Delivery: Typically 7-30 days
3.Painting:No painting
Features
1.Combination welded cores-Air&Oil&Water cores
2.Brazed aluminum core/bar and plate
3.Excellent for field conversions
4.Compact design
5.Light weight
6.Compact,high performance all aluminum core assembly

Images Of Air to Air Intercooelr Core

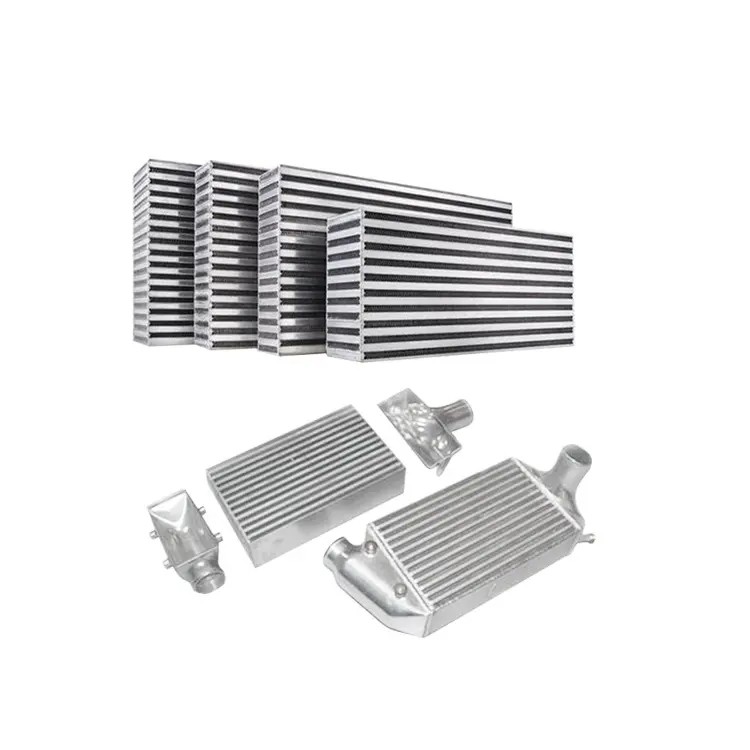

intercooler core

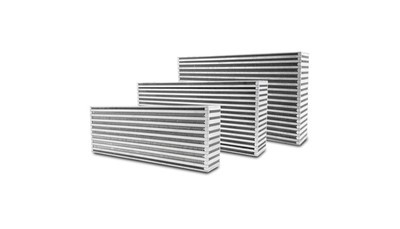

intercooler core for sale


Jiusheng Factory Show

factory detail show


Process Of Aluminum Heat Exchanger Core( Intercooler Core )

process


Packing & Delivery

intercooler packing


Our Certificates

our certificates

our certificates about heat exchanger


Our Customers

our customer


warranty

Jiusheng strive to produce the highest quality products designed to withstand many years of use and we are proud to stand behind these products. However, we manufacture many products and if you make enough of anything, a limited number of problems may be expected. It is how we deal with a problem that is important!



Effective January 2009 onwards, if your product fails due to a manufacturing defect we will repair or replace it without charge, at our discretion. Only original, unaltered and unmodified materials and workmanship are covered by this policy.



This warranty does not cover damage caused by accident, improper care, negligence, normal wear and tear, or the natural breakdown of materials over extended time and use.



Damage not covered under warranty may be repaired for a reasonable rate and a fee will be charged for return shipping.



The products eligible for warranty are covered to the original owner, for the lifetime of the product. For warranty evaluation, your product must be returned directly to No. 6, Bibo Road, Wuxi, Jiangsu, China.



All shipping for warranty must be pre-paid and insured and accompanied by reference to the original invoice. We cannot be liable for lost or damaged in-bound packages. Please check the warranty tab on the product detail page for further information. You accept these conditions by purchasing the product.
